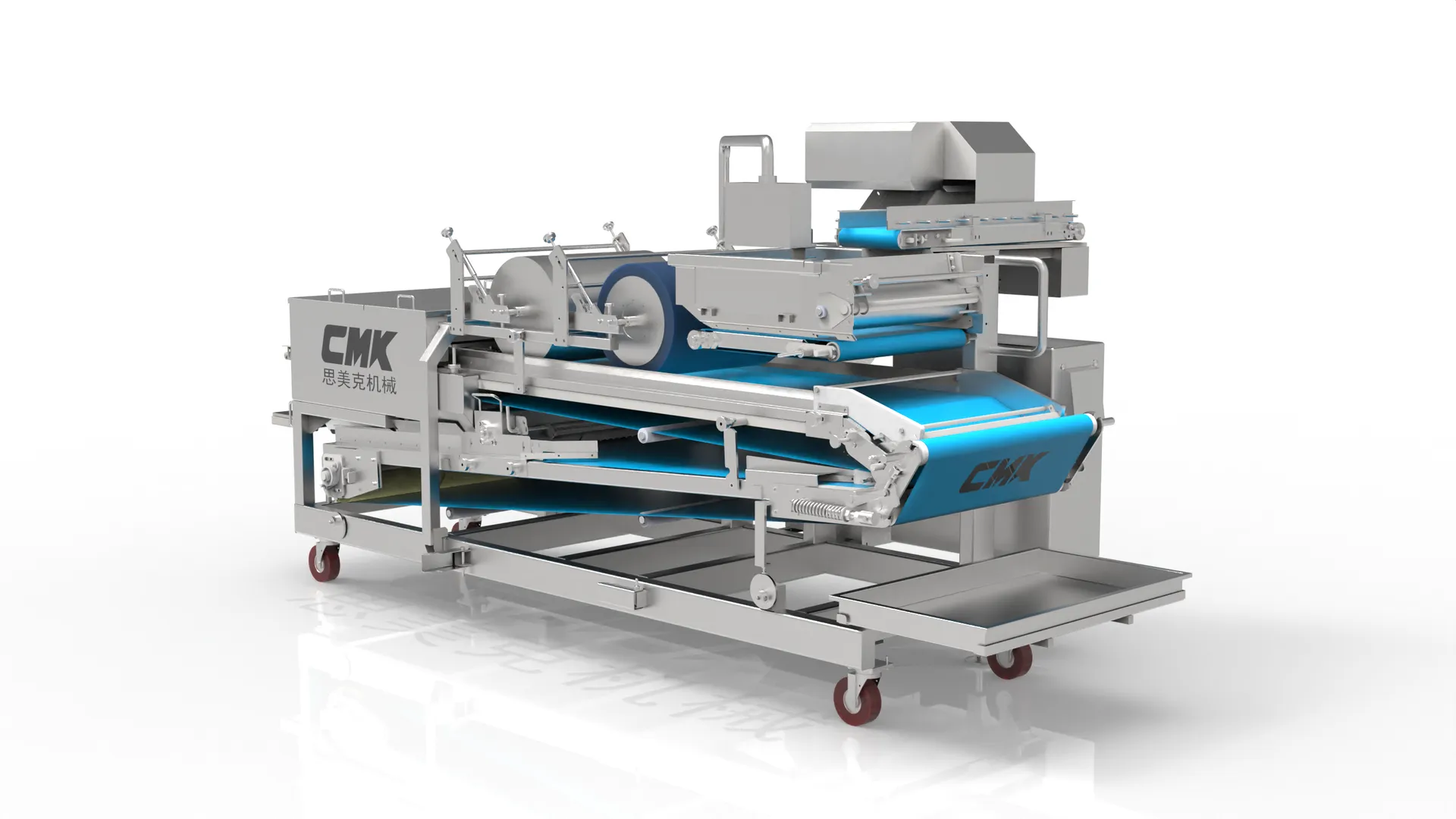

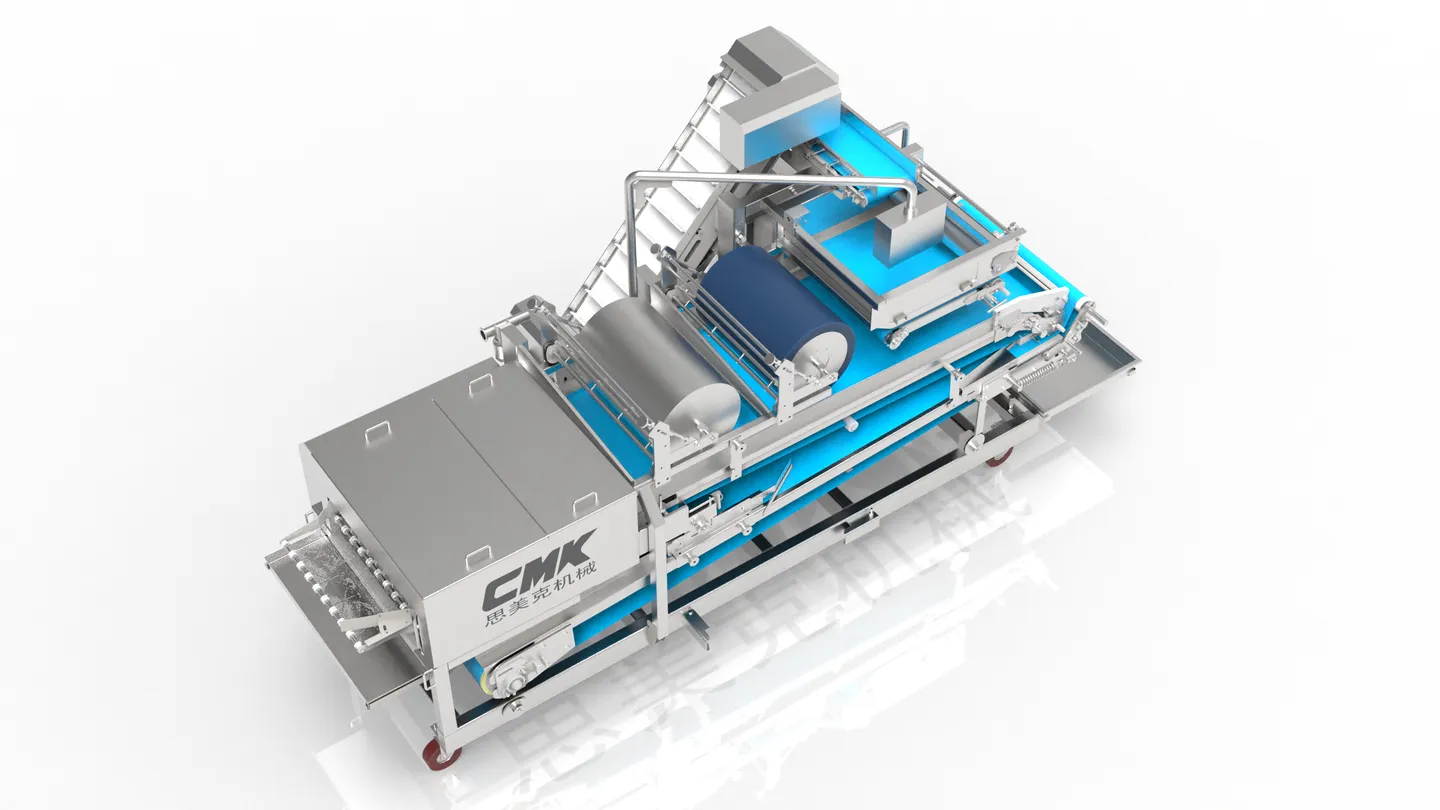

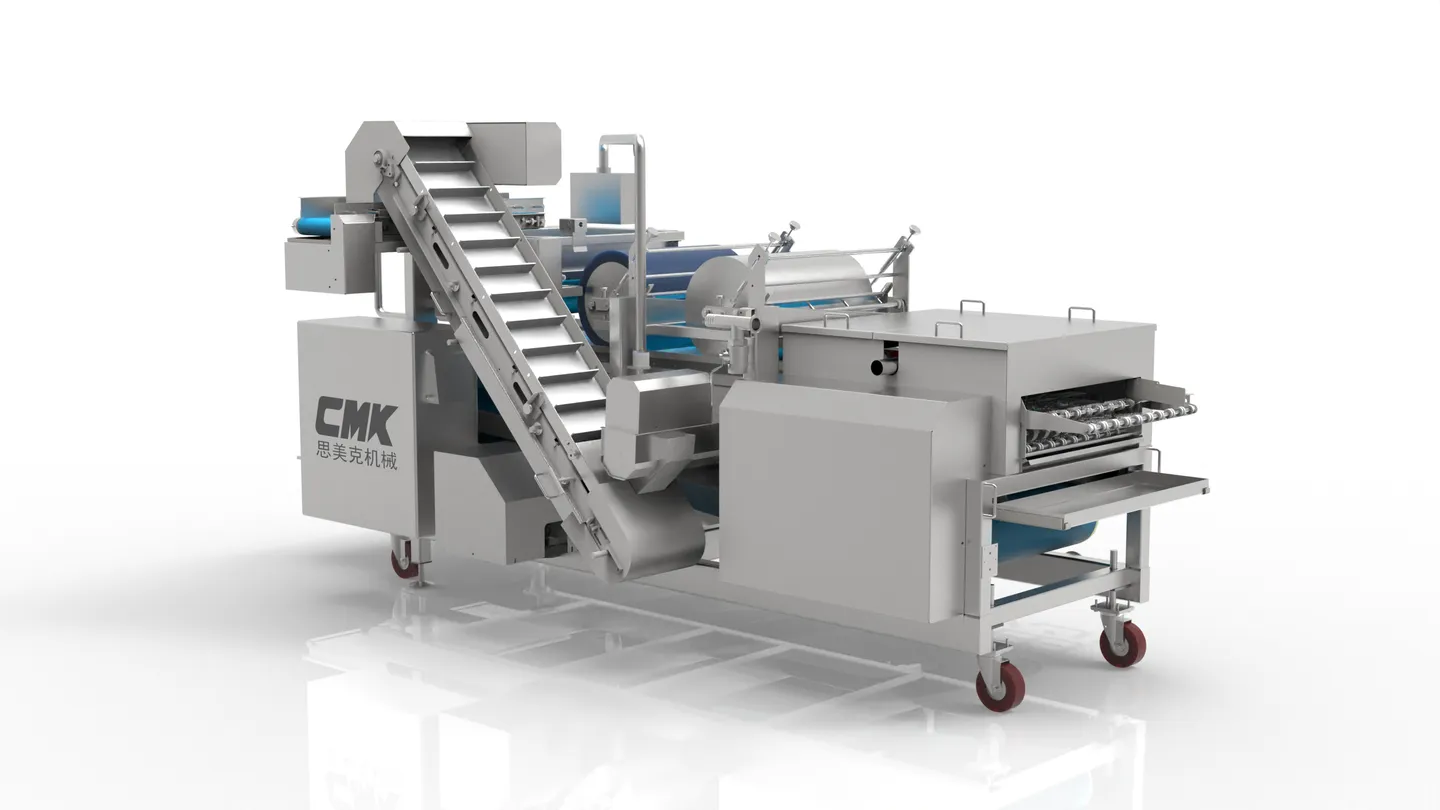

Breader
Applies fresh breadcrumbs, dry breadcrumbs, cornflakes, and mixed powders evenly to aquatic products, meat, vegetables, and compound foods. Built for clean operation and easy line integration.
Model: CMK-GK600 / CMK-GK800 / CMK-GK1000
Features of Breader
- ✓Uniform coating supports consistent finished-product quality and high yield.
- ✓Quick-release assembly/disassembly supports efficient daily cleaning.
- ✓Effective width options: 600mm, 800mm, and 1000mm.
- ✓Line-compatible with dip battering and curtain battering machines.
- ✓Compatible with fresh breadcrumbs, dry breadcrumbs, cornflakes, and mixed powders.
- ✓PLC control keeps operation and maintenance straightforward.
- ✓Conveyor speed is VFD-adjustable from 2~15m/min.
About This Machine
The Breader is built for the coating stage of food processing lines, applying fresh breadcrumbs, dry breadcrumbs, cornflakes, and mixed powders evenly to aquatic products, meat, vegetables, and compound foods. A core component of any battering and breading line, it combines reliable performance with easy operation and low maintenance.
Coating Quality
Delivers uniform coating for consistent finished-product quality and high yield. Compatible with fresh breadcrumbs, dry breadcrumbs, cornflakes, and mixed powders to suit a wide range of product recipes.
Maintenance
Full stainless steel construction. Simple structure, easy operation, and low maintenance cost make daily cleaning quick and trouble-free.
Line Integration
Line-compatible with dip batter and curtain battering machines for fully automated production from pre-dusting through to breading. Available in three effective widths (600mm, 800mm, 1000mm) to match different capacity requirements.
Applications
Suitable for breading fish fillets, shrimp cutlets, capelin, horse mackerel, squid rings, meat patties, veggie cakes, and other flat, block, ring, or strip-shaped food products.
Technical Parameters
- CMK-GK600
- 3400 × 1700 × 1850mm
- Upper Belt Width
- 705mm
- Lower Belt Width
- 800mm
- Effective Width
- 600mm
- Conveyor Speed
- 2 ~ 15m/min (VFD adjustable)
- Inlet Height
- 930mm
- Outlet Height
- 860mm
- Power
- 4.0kw
- Capacity
- 12,000 ~ 20,000 pcs/h
- CMK-GK800
- 3500 × 2000 × 1850mm
- Upper Belt Width
- 905mm
- Lower Belt Width
- 1000mm
- Effective Width
- 800mm
- Conveyor Speed
- 2 ~ 15m/min (VFD adjustable)
- Inlet Height
- 930mm
- Outlet Height
- 860mm
- Power
- 4.55kw
- Capacity
- 15,000 ~ 25,000 pcs/h
- CMK-GK1000
- 3550 × 2200 × 1850mm
- Upper Belt Width
- 1105mm
- Lower Belt Width
- 1200mm
- Effective Width
- 1000mm
- Conveyor Speed
- 2 ~ 15m/min (VFD adjustable)
- Inlet Height
- 930mm
- Outlet Height
- 860mm
- Power
- 4.55kw
- Capacity
- 18,000 ~ 32,000 pcs/h
Request a Quote & Configuration
Share your product specs and capacity targets. We'll recommend the right configuration with detailed technical data.
