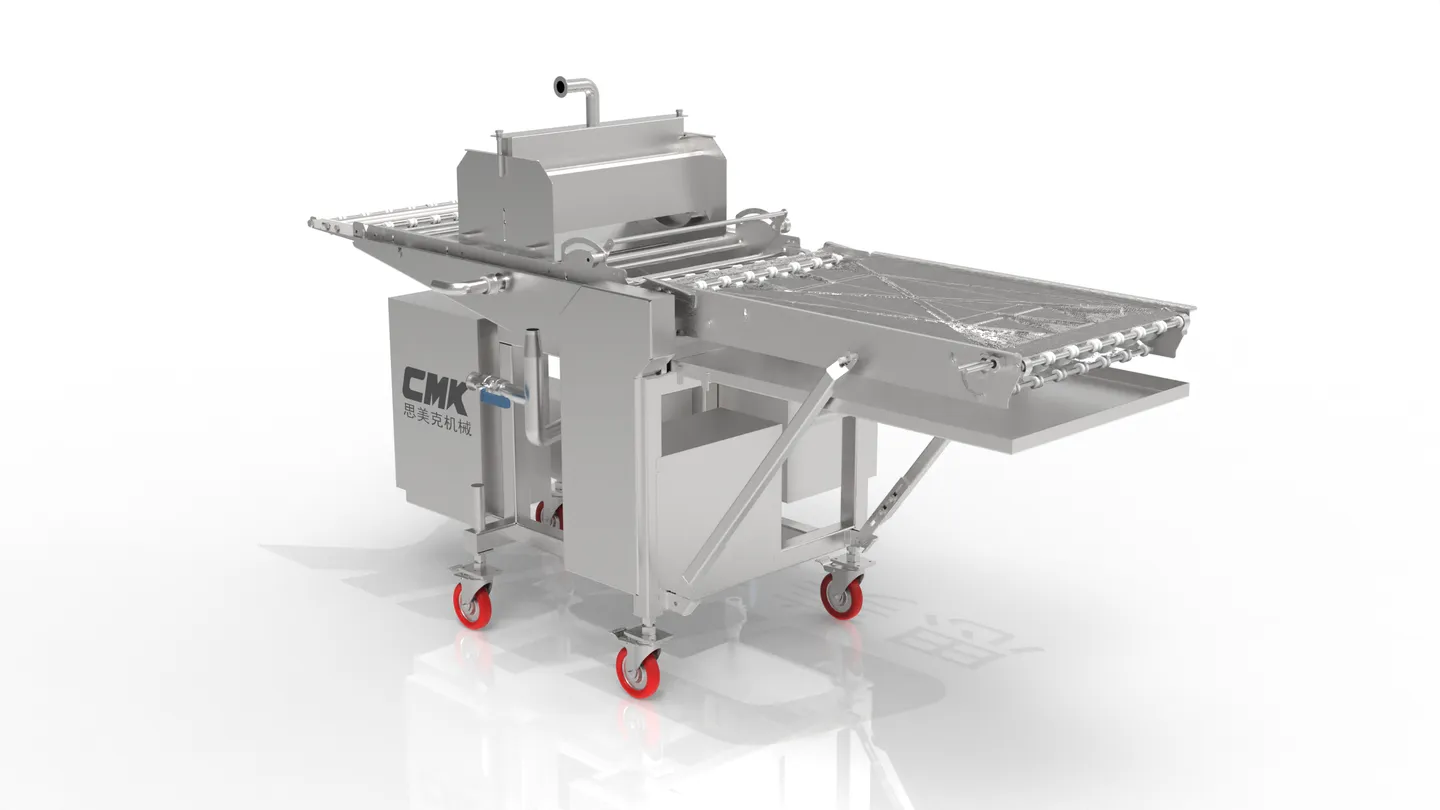

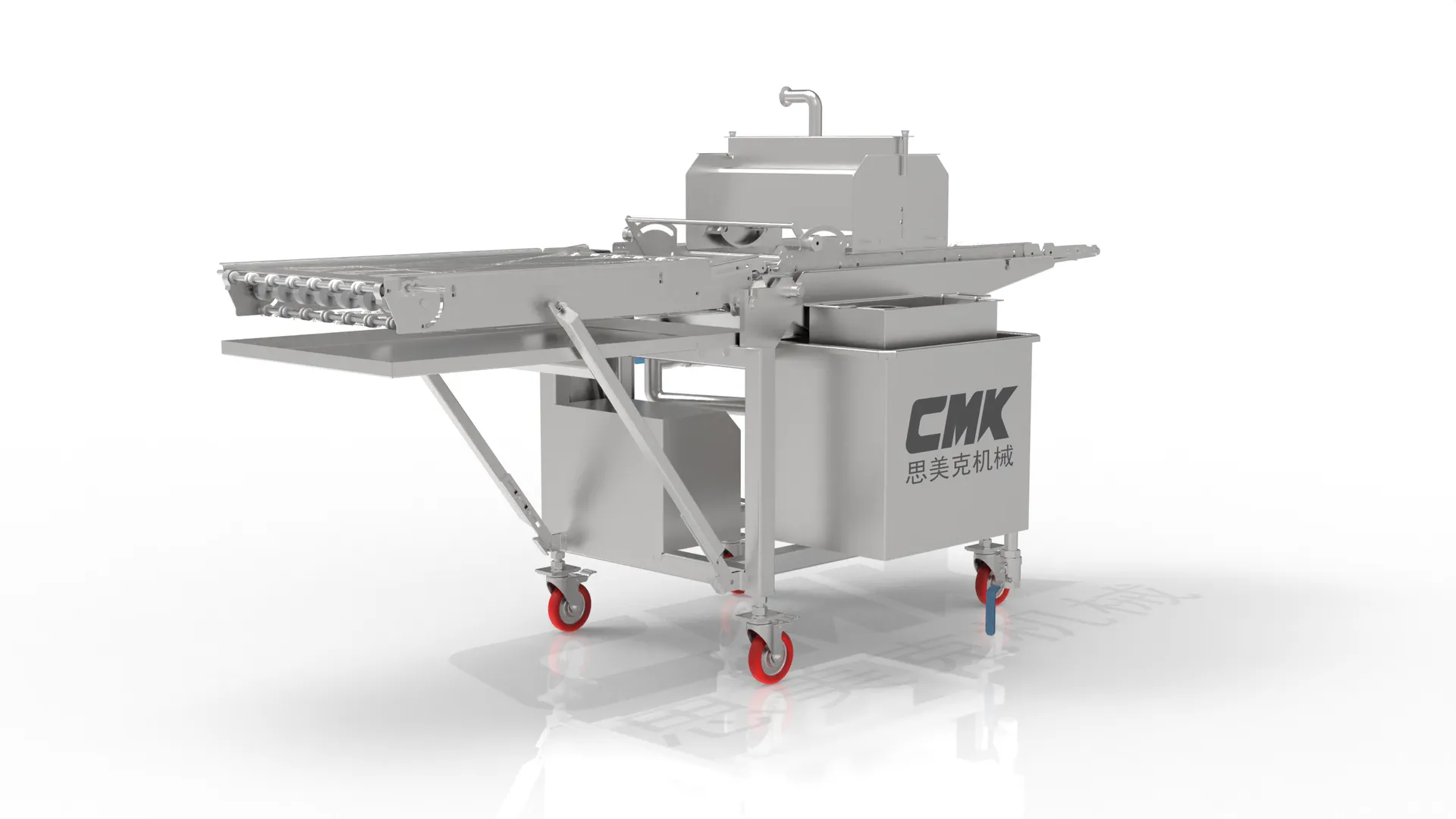

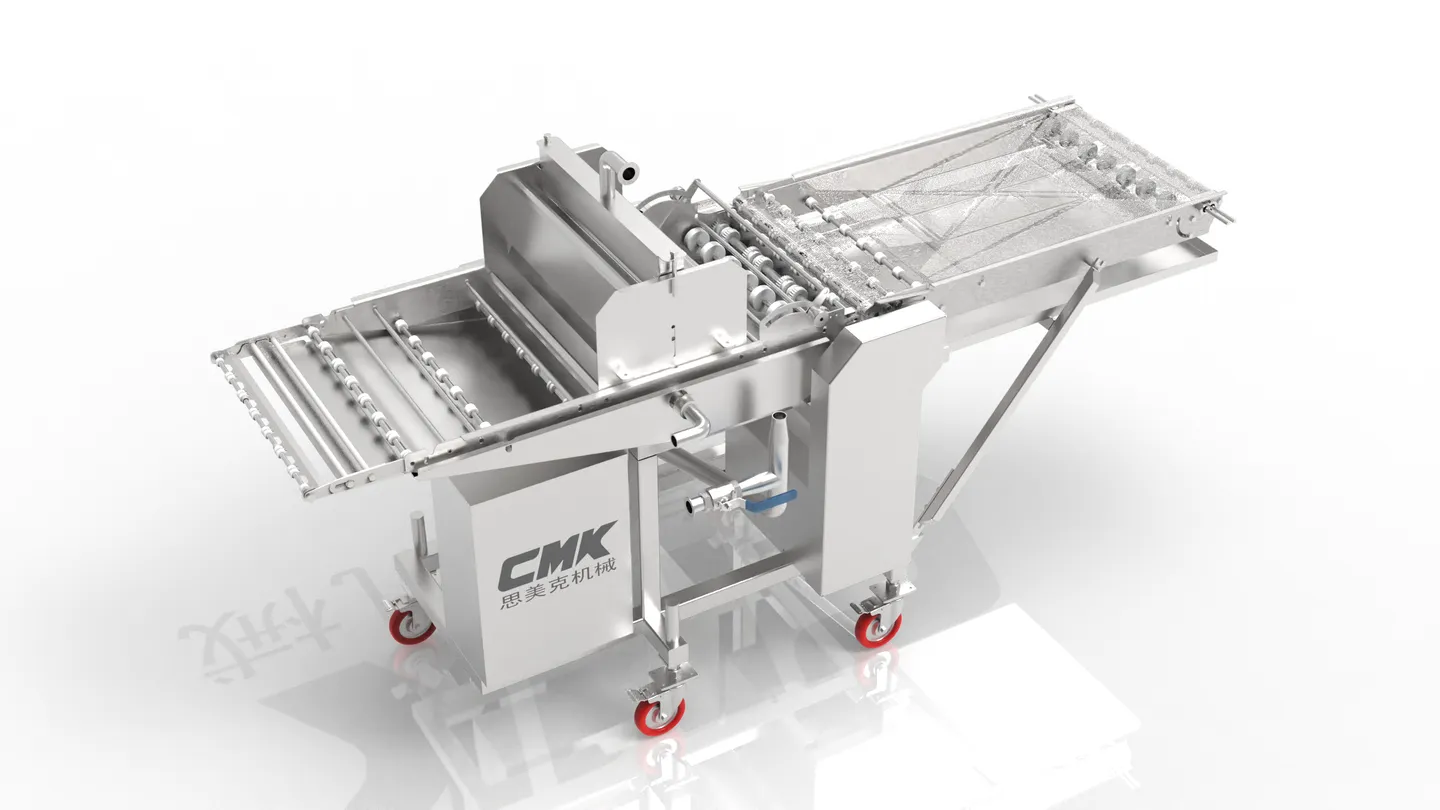

Curtain-Battering Machine
Uses single or dual batter curtains for even top-and-bottom coating. Adjustable pump flow, SUS304 air knife, and ice slots help control coating quality.
Model: CMK-LJ600 / CMK-LJ800 / CMK-LJ1000
Features of Curtain-Battering Machine
- ✓Single or dual batter curtains provide adjustable coating uniformity.
- ✓Dedicated batter pump supports controlled batter flow.
- ✓Exterior ice slots maintain batter at low temperature.
- ✓Width options: 600mm, 800mm, and 1000mm.
- ✓Curtain flow and bottom flow are independently adjustable.
- ✓SUS304 air knife provides even, adjustable airflow and is easy to clean.
- ✓SUS304 stainless steel construction supports disassembly and efficient cleaning.
About This Machine
The Curtain-Battering Machine uses dual or single batter curtains to evenly coat food products as they pass through the batter flow. A dedicated batter pump with flow control allows independent adjustment of curtain flow and bottom flow. The SUS304 stainless steel air knife at the exit provides even, adjustable airflow and is easy to clean. Ice slots on the batter tank exterior keep batter at low temperature.
Batter Method
Dual or single batter curtains coat with adjustable uniformity. Curtain flow and bottom flow are independently adjustable for different batter formulas. The SUS304 air knife at the exit provides uniform, adjustable airflow and is easy to clean. Ice slots on the tank exterior maintain batter at low temperature.
Hygiene & Safety
SUS304 stainless steel construction provides high corrosion resistance. The entire machine is designed for easy disassembly and efficient cleaning.
Models & Integration

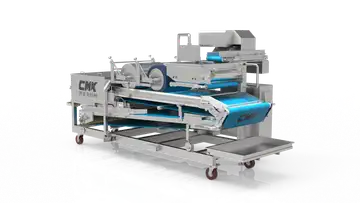

Three width options (600mm, 800mm, 1000mm) to suit different production scales. Line-compatible with pre-dusters and breaders for complete automated battering & breading lines.
Applications
Suitable for batter-coating fish fillets, meat slices, fish cakes, meat patties, squid rings, and other block, strip, or flat-shaped food products.
Technical Parameters
- CMK-LJ600
- 2335 × 1120 × 1280mm
- Effective Width
- 600mm
- Conveyor Speed
- 2 ~ 15m/min (VFD adjustable)
- Inlet Height
- 920mm
- Outlet Height
- 870mm
- Power
- 3.0kw
- Capacity
- 12,000 ~ 20,000 pcs/h
- CMK-LJ800
- 2335 × 1320 × 1280mm
- Effective Width
- 800mm
- Conveyor Speed
- 2 ~ 15m/min (VFD adjustable)
- Inlet Height
- 920mm
- Outlet Height
- 870mm
- Power
- 3.35kw
- Capacity
- 15,000 ~ 25,000 pcs/h
- CMK-LJ1000
- 2335 × 1520 × 1280mm
- Effective Width
- 1000mm
- Conveyor Speed
- 2 ~ 15m/min (VFD adjustable)
- Inlet Height
- 920mm
- Outlet Height
- 870mm
- Power
- 3.75kw
- Capacity
- 18,000 ~ 32,000 pcs/h
