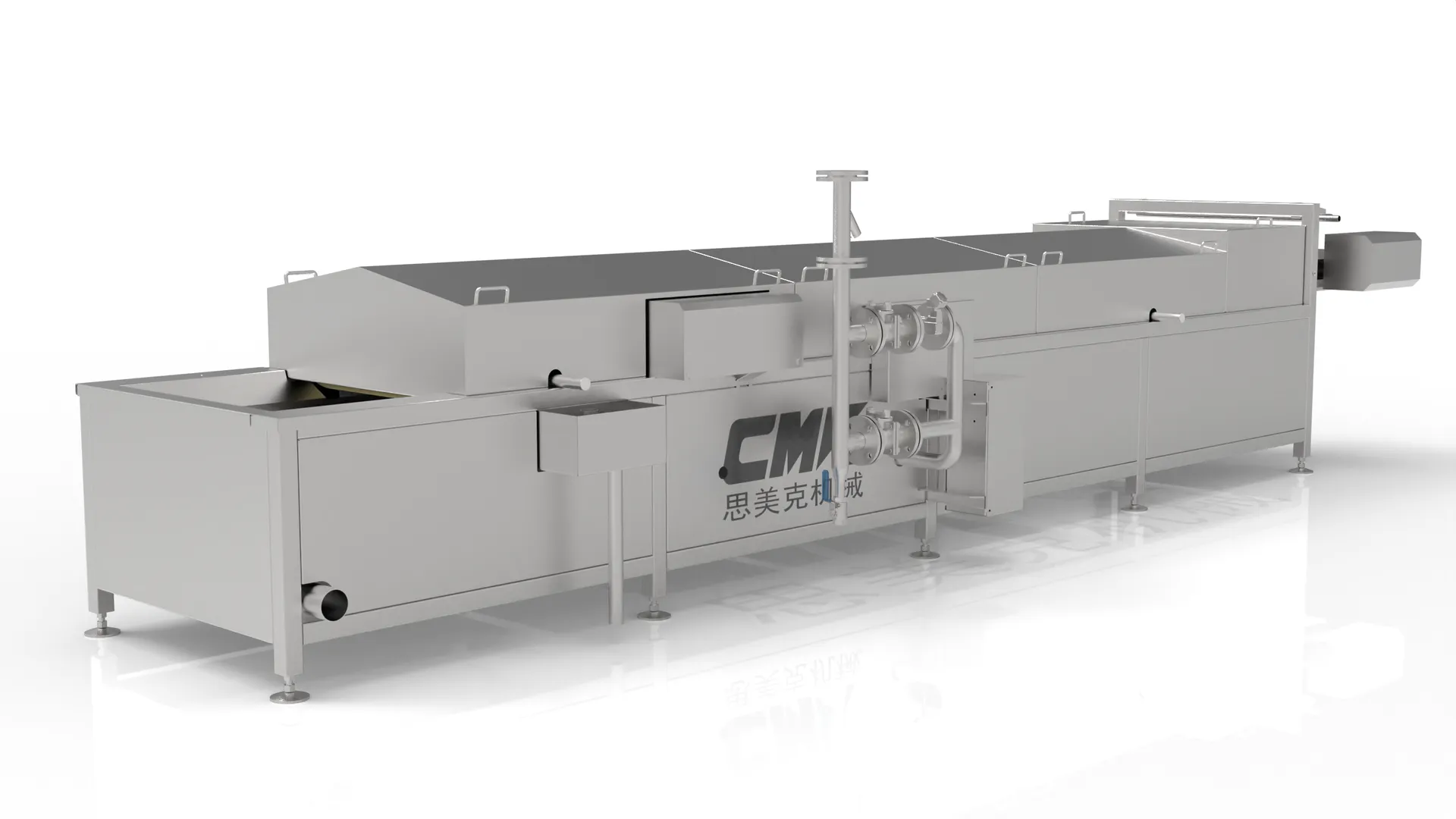

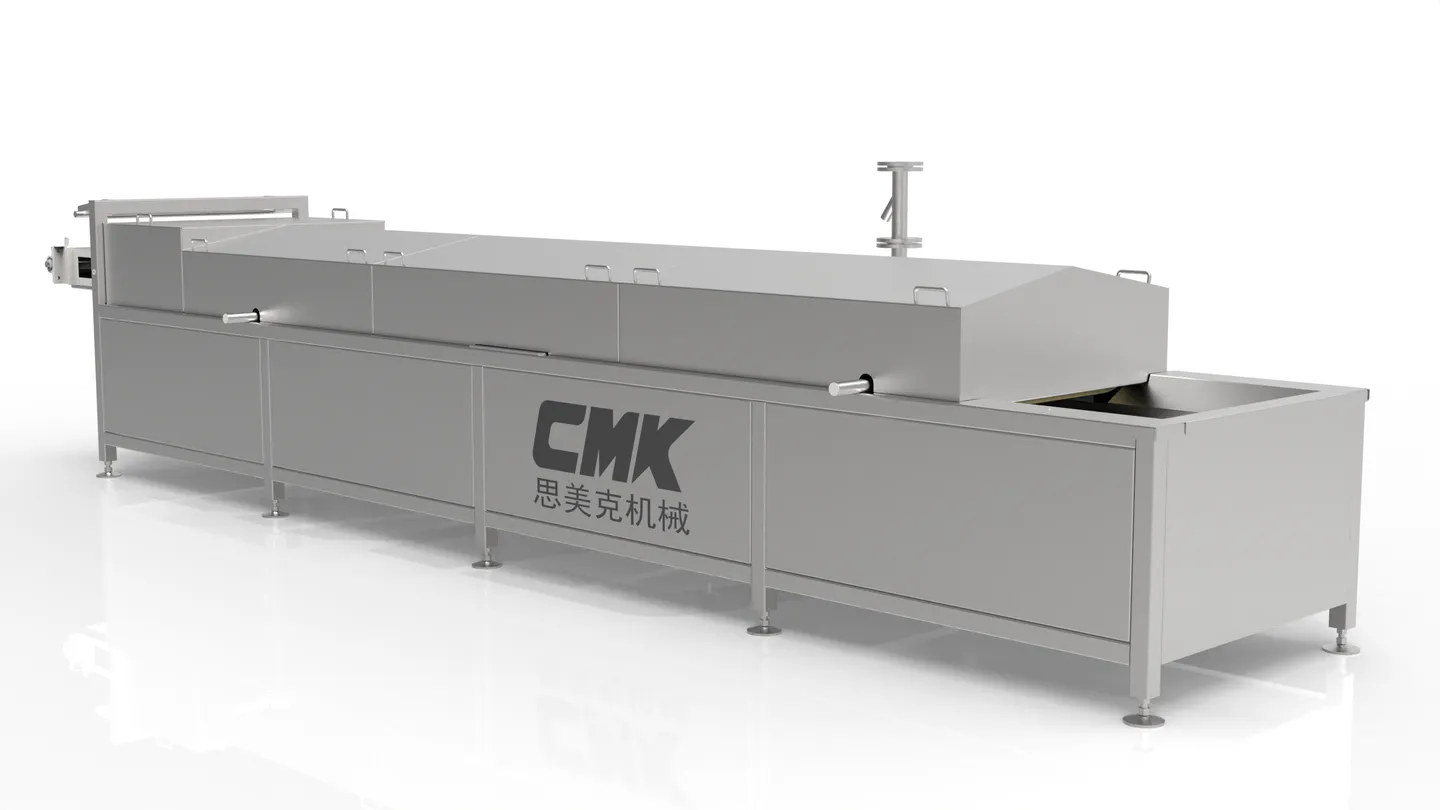

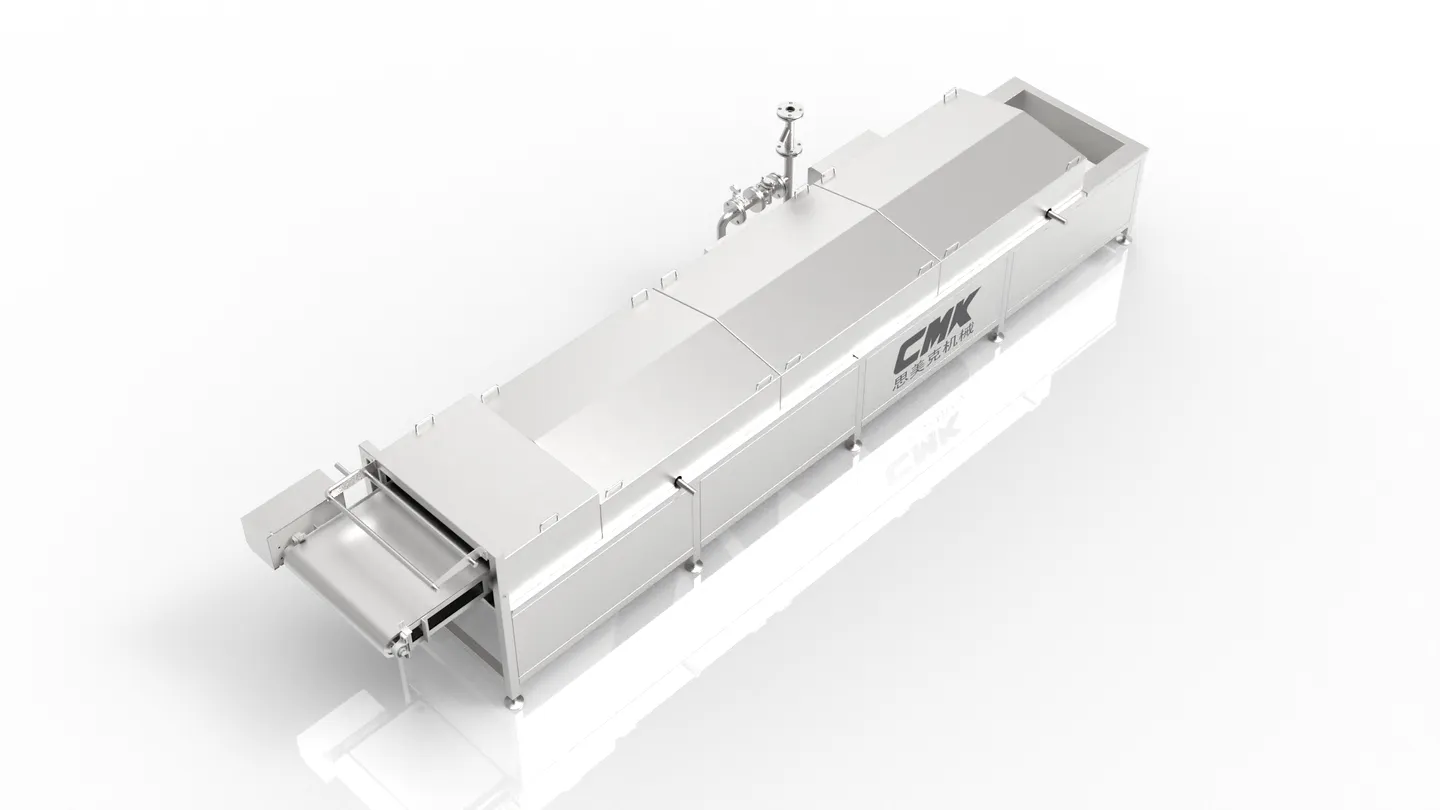

Blanching Machine
Continuous hot-water blanching, cooking, and sterilization with automatic steam regulation. VFD belt speed and custom dimensions adapt to each process line.
Features of Blanching Machine
- ✓Continuous water-bath operation delivers even heat distribution.
- ✓Automatic steam input regulation maintains the set water temperature.
- ✓Steam valve assembly includes separate manual and automatic pipelines.
- ✓Steam heating pipes and valves are SUS304 stainless steel.
- ✓Sectional detachable top cover uses water-sealed sealing.
- ✓Water temperature range runs from ambient to 100°C.
- ✓Processing time is VFD-controlled for flexible blanching or cooking time.
- ✓Full SUS304 stainless steel body is corrosion-resistant.
- ✓Tank body and top cover use double-layer stainless steel insulation.
- ✓Steam heating requires 5~7 kg/cm² external steam supply.
About This Machine
The Blanching Machine is engineered for blanching, cooking, and sterilization in food processing lines. It maintains stable high-temperature water in the processing tank, uniformly cooking or blanching products as they pass through on the conveyor. The operator sets the target water temperature per their process requirements, and the system automatically regulates steam input to maintain it. Belt speed is VFD-adjustable. Machine dimensions are customized to customer facility layout and production capacity.
Cooking Process
Continuous water-bath cooking delivers even heat distribution for stable, consistent results. Processing time is VFD-controlled to flexibly match cooking and blanching times for any product. Water temperature range ambient to 100°C — the operator sets the target temperature per their process requirements, and the system automatically regulates steam input to maintain it. Steam valve assembly includes separate manual and automatic pipelines for maintenance and emergency use.
Materials & Maintenance
Full SUS304 stainless steel body — corrosion-resistant. All steam heating pipes and valves are SUS304 stainless steel. Tank body and top cover are double-layer stainless steel insulated construction. A sealed access door on one side of the machine opens for cleaning. The top cover is a sectional, detachable structure with water-sealed sealing. Heating method: steam; required steam pressure 5~7 kg/cm²; external steam source required.
Applications
Suitable for blanching, cooking, and sterilization of various food products.
Technical Parameters
| Parameter | Specification |
|---|---|
| Dimensions (L×W×H) | Customized per order |
| Processing Time | VFD adjustable |
| Steam Valve Pipelines | Independent manual + automatic pipelines |
| Material | SUS304 Stainless Steel |
| Heating Method | Steam heating (external steam source required) |
| Required Steam Pressure | 5 ~ 7 kg/cm² |
Request a Quote & Configuration
Share your product specs and capacity targets. We'll recommend the right configuration with detailed technical data.
