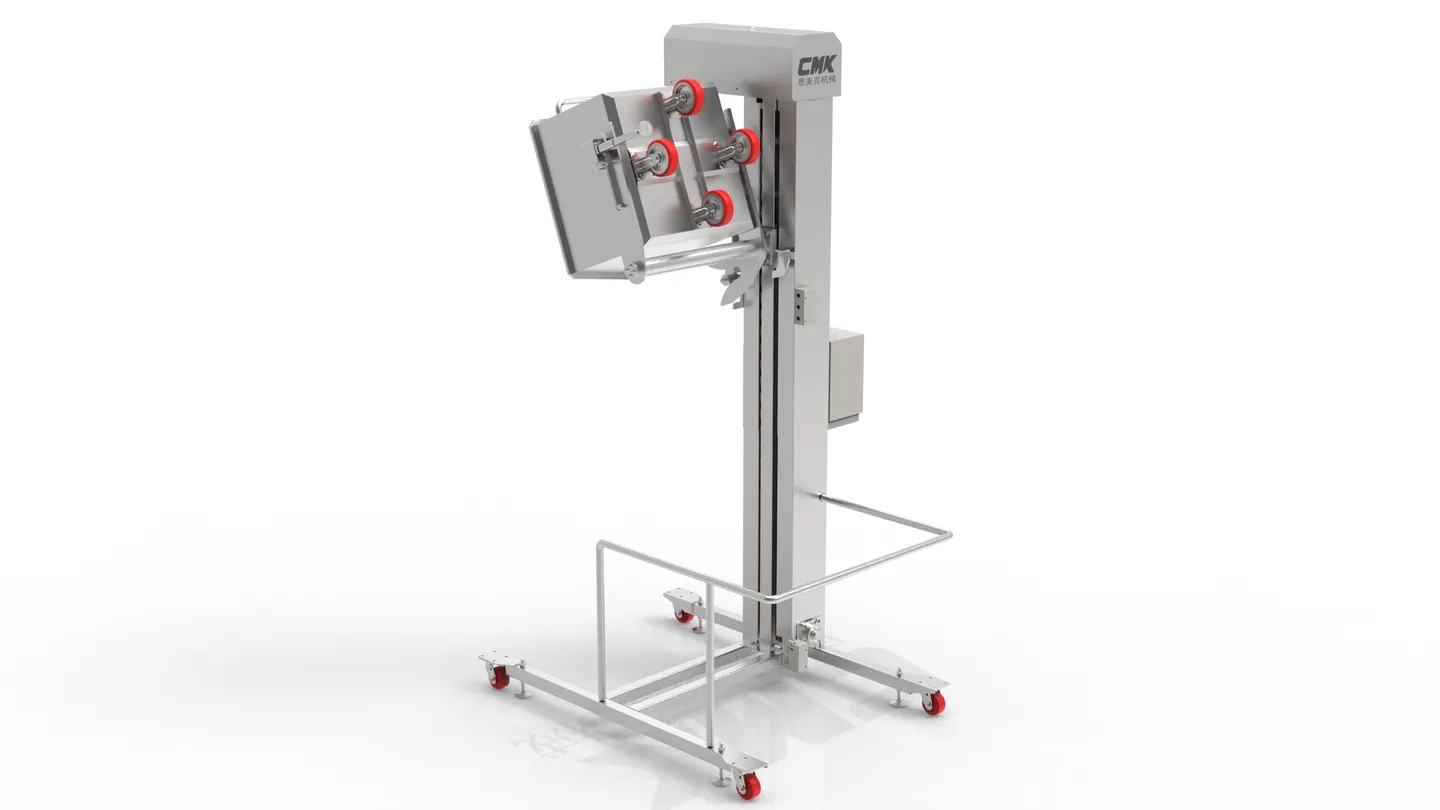

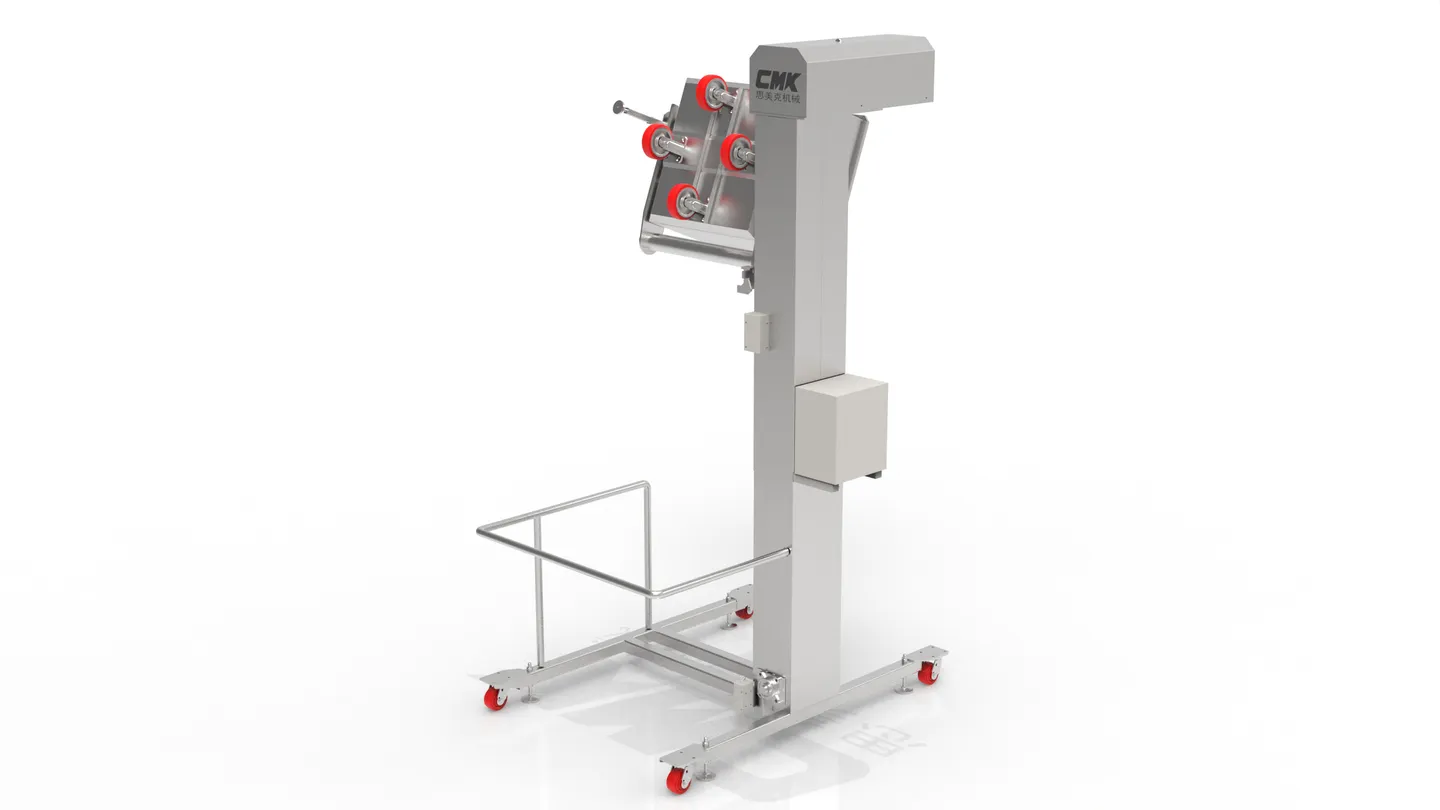

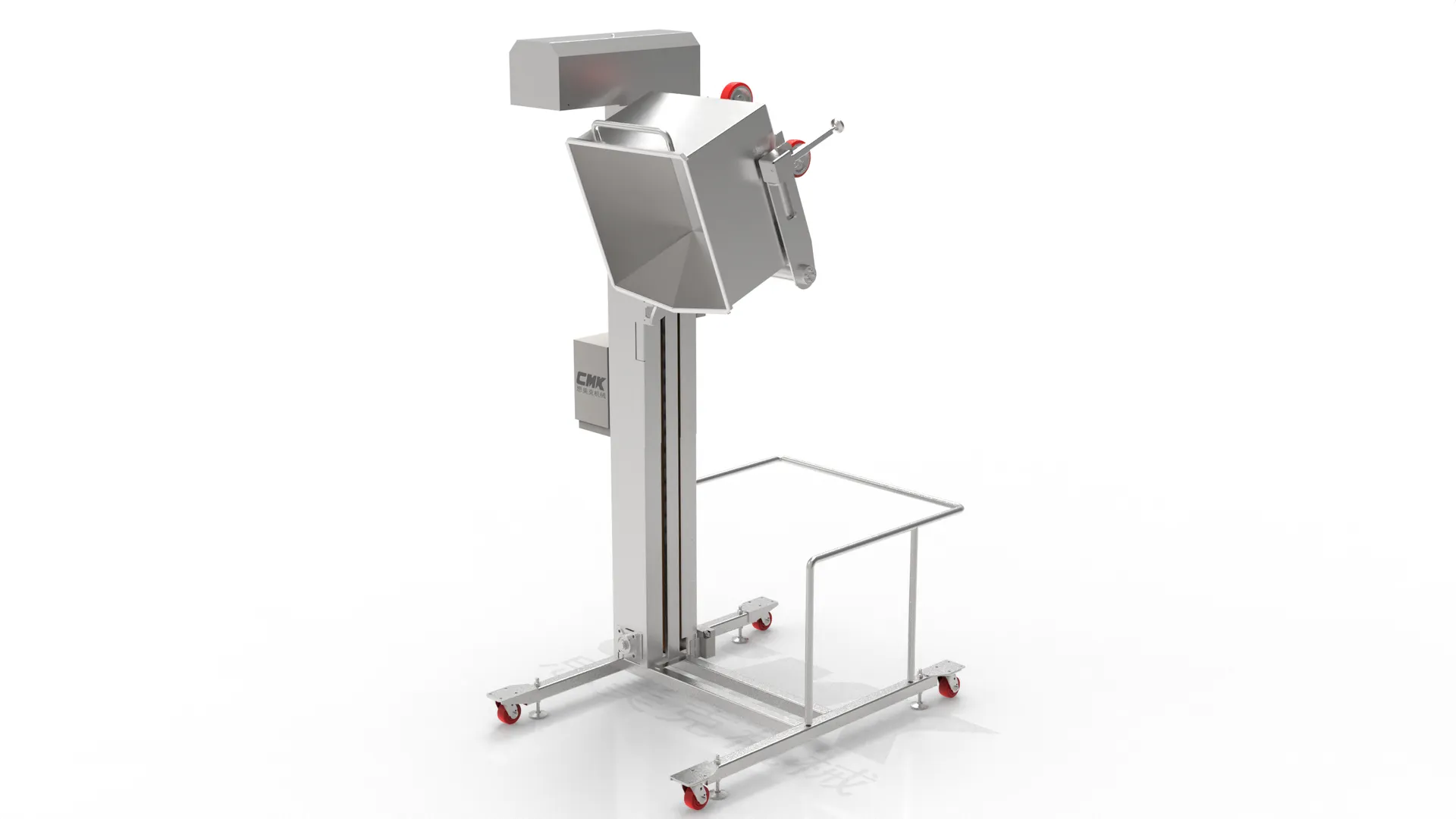

Feeding Elevator
Lifts raw material from low-level loading to the forming machine hopper. SUS304 construction, compact vertical travel, and customizable lift height support continuous feeding.
Features of Feeding Elevator
- ✓Vertical lifting structure saves floor space and keeps material conveying stable.
- ✓Maximum lifting height is 1615mm and can be customized.
- ✓Drive motor power is 0.75kw.
- ✓Can synchronize with the forming machine for continuous automatic feeding.
- ✓Maximum load capacity is 250kg.
- ✓SUS304 stainless steel frame and covers are corrosion-resistant and easy to clean.
- ✓Simple structure supports easy installation and low maintenance.
About This Machine
The Feeding Elevator is an essential auxiliary device for food forming machines. It is designed to smoothly transfer raw materials from a low-level feeding position to the forming machine hopper. With its vertical lifting structure, the machine saves floor space with smooth material conveying. The maximum lifting height can be customized to meet different production line layouts. The frame and protective covers are made of full SUS304 stainless steel, providing corrosion resistance.
Lifting Capacity
Customizable to customer factory and line requirements. Maximum load capacity of 250kg for high-volume continuous production. Works in sync with forming machine for continuous automatic raw material feeding — reducing manual handling.
Equipment Features
SUS304 stainless steel frame and covers — corrosion-resistant and easy to clean. Energy-efficient 0.75kw drive motor. Simple structure for easy installation and low maintenance costs.
Applications
Suitable for lifting all kinds of raw material to the inlet of forming machines.
Technical Parameters
| Parameter | Specification |
|---|---|
| Dimensions (L×W×H) | Approx. 1750 × 1435 × 2680mm |
| Max Lift Height | Customizable） |
| Max Load Capacity | 250kg |
| Frame Material | SUS304 Stainless Steel |
| Motor Power | 0.75kw |
Request a Quote & Configuration
Share your product specs and capacity targets. We'll recommend the right configuration with detailed technical data.
