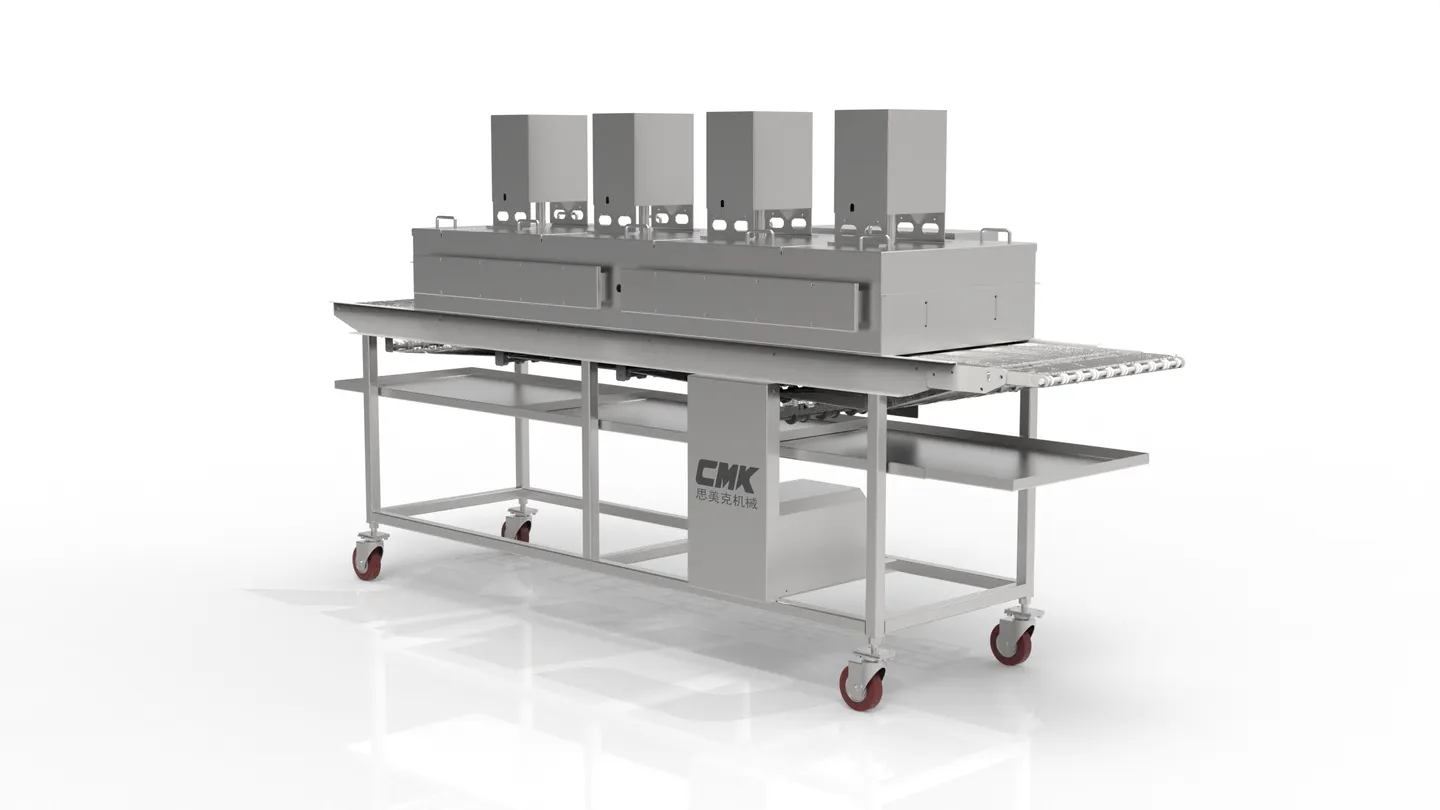

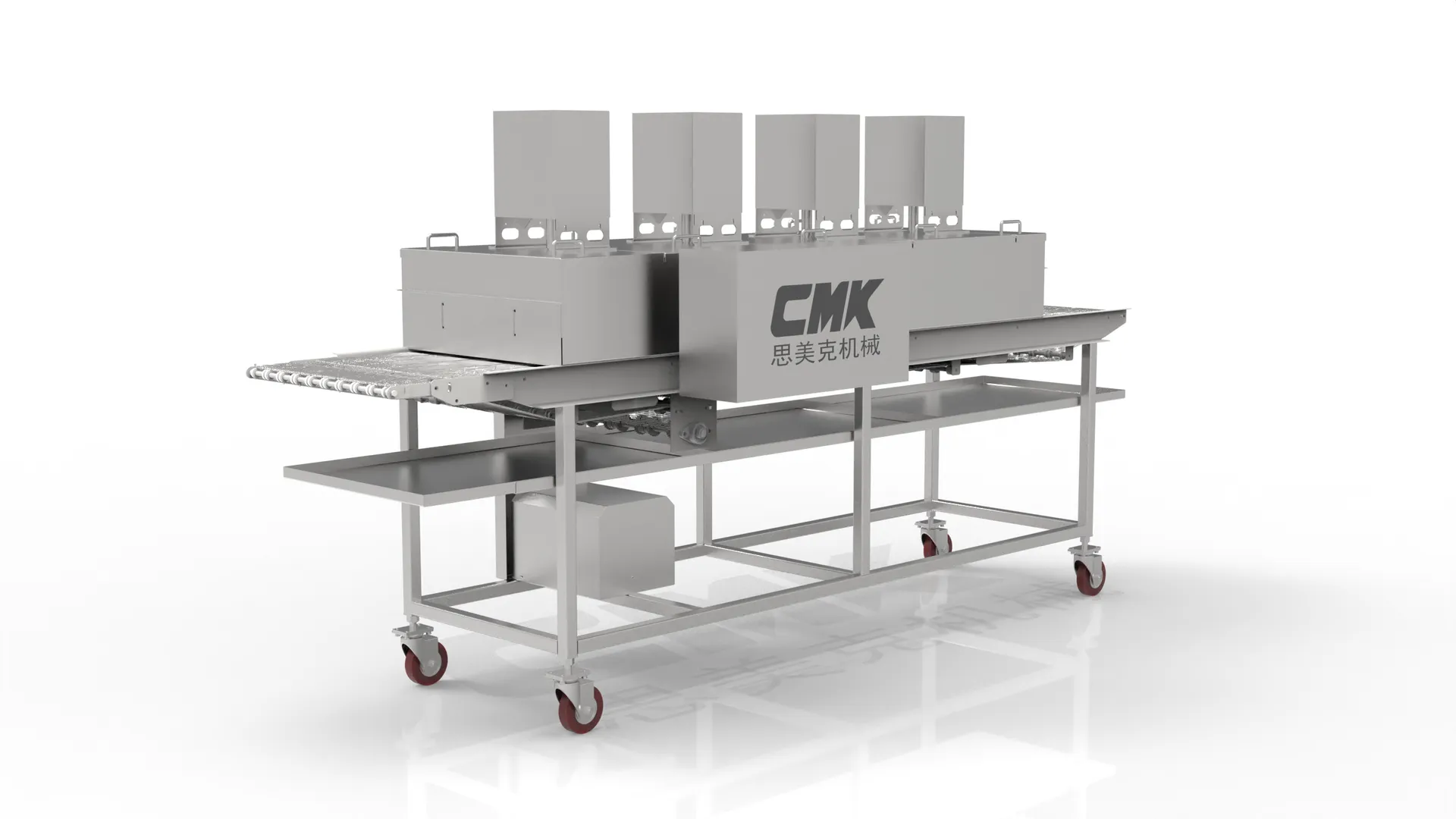

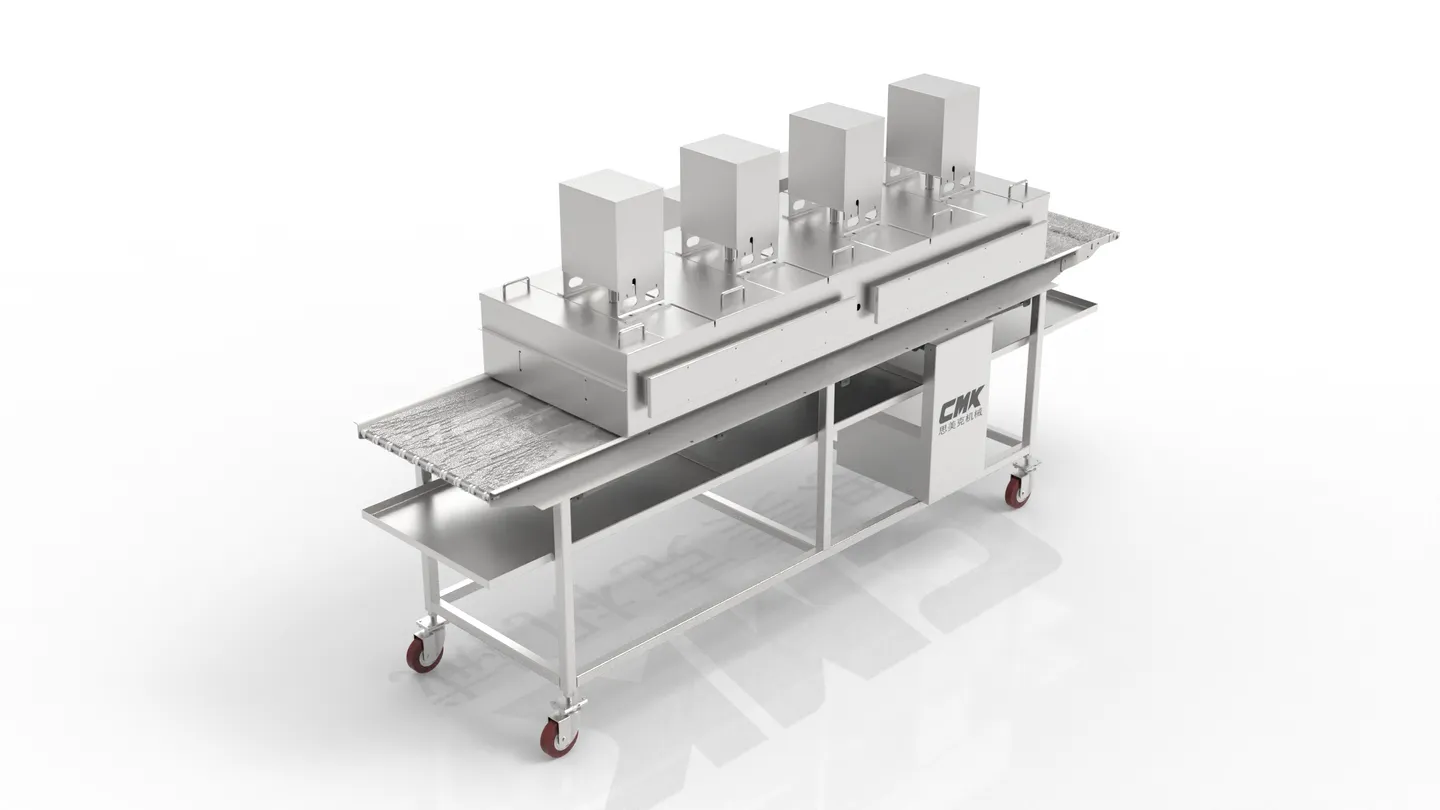

Electric Thawing Machine
Electrically heated hot-air thawing for frozen products before pre-dusting, battering, or breading. Mobile design supports flexible process placement.
Model: CMK-DJD600 / CMK-DJD800 / CMK-DJD1000
Features of Electric Thawing Machine
- ✓Electric heating elements and hot air circulation provide uniform surface thawing.
- ✓Automatic heating regulation maintains the set temperature.
- ✓Fully electric design allows the machine to be repositioned within the process.
- ✓Full stainless steel construction supports easy cleaning.
- ✓Temperature range runs from ambient to 170°C.
- ✓Belt speed is VFD-controlled from 2~15m/min.
- ✓Width options: 600mm, 800mm, and 1000mm.
About This Machine
The Electric Thawing Machine is engineered for surface thawing of frozen products prior to pre-dusting, battering, or breading. Using electric heating elements with hot air circulation, it delivers uniform surface thawing up to 170°C. The operator sets the target temperature according to their process requirements, and the system automatically regulates heating to maintain that temperature throughout production. Fully electric, it can be freely repositioned within the production process as needed.
Thawing Process
Hot air circulation supports uniform surface thawing for consistent results. Temperature range ambient to 170°C — the operator sets the target temperature per their process requirements, and the system automatically regulates heating to hold that value. VFD-controlled belt speed (2~15m/min) adapts flexibly to different product thawing time requirements.
Equipment Features
Fully electric, the machine can be freely repositioned within the production process. Three width options (600mm, 800mm, 1000mm) to match different production line widths. Full stainless steel construction for easy cleaning.
Applications
Suitable for surface thawing of frozen products prior to pre-dusting, battering, or breading.
Technical Parameters
- CMK-DJD600
- 3000 × 850 × 1550mm
- Effective Width
- 600mm
- Belt Speed
- 2 ~ 15m/min (adjustable)
- Conveyor Height
- 900mm
- Thawing Temp Range
- Room temperature ~ 170°C
- Total Power
- 26kw
- Heating Power
- 24kw
- Capacity
- 12,000 ~ 20,000 pcs/h
- CMK-DJD800
- 3000 × 1050 × 1550mm
- Effective Width
- 800mm
- Belt Speed
- 2 ~ 15m/min (adjustable)
- Conveyor Height
- 900mm
- Thawing Temp Range
- Room temperature ~ 170°C
- Total Power
- 32kw
- Heating Power
- 30kw
- Capacity
- 15,000 ~ 25,000 pcs/h
- CMK-DJD1000
- 3000 × 1250 × 1550mm
- Effective Width
- 1000mm
- Belt Speed
- 2 ~ 15m/min (adjustable)
- Conveyor Height
- 900mm
- Thawing Temp Range
- Room temperature ~ 170°C
- Total Power
- 38kw
- Heating Power
- 36kw
- Capacity
- 18,000 ~ 32,000 pcs/h
Request a Quote & Configuration
Share your product specs and capacity targets. We'll recommend the right configuration with detailed technical data.
