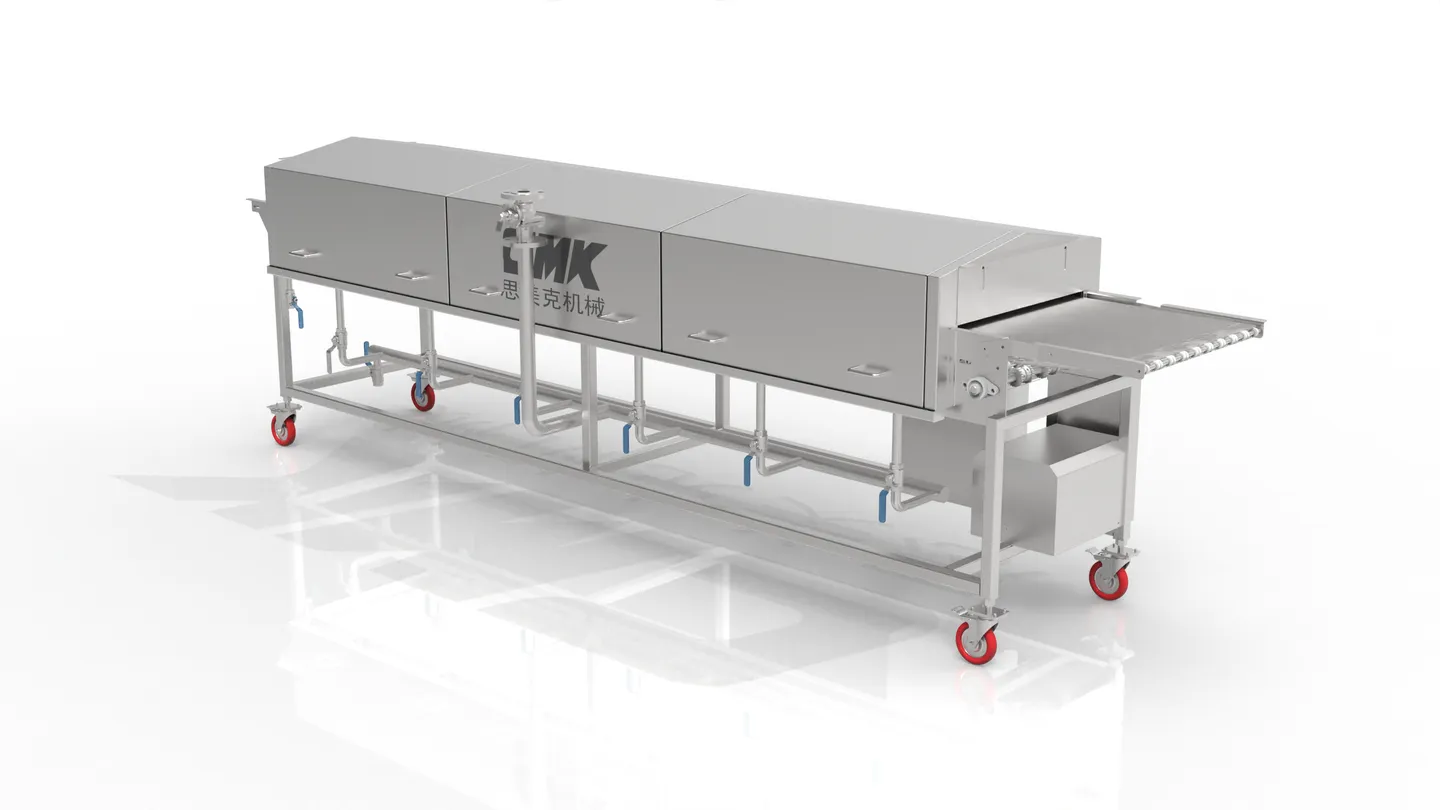

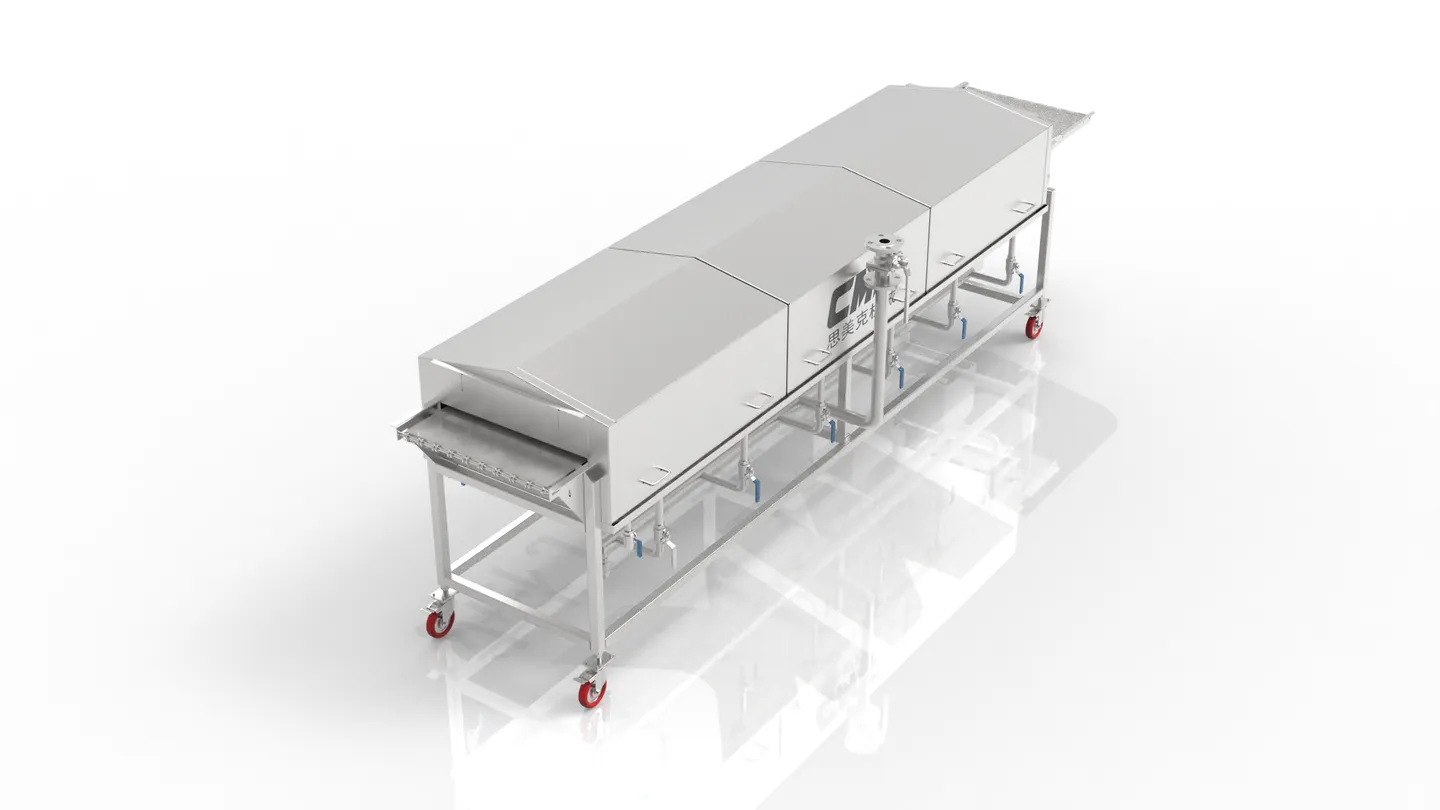

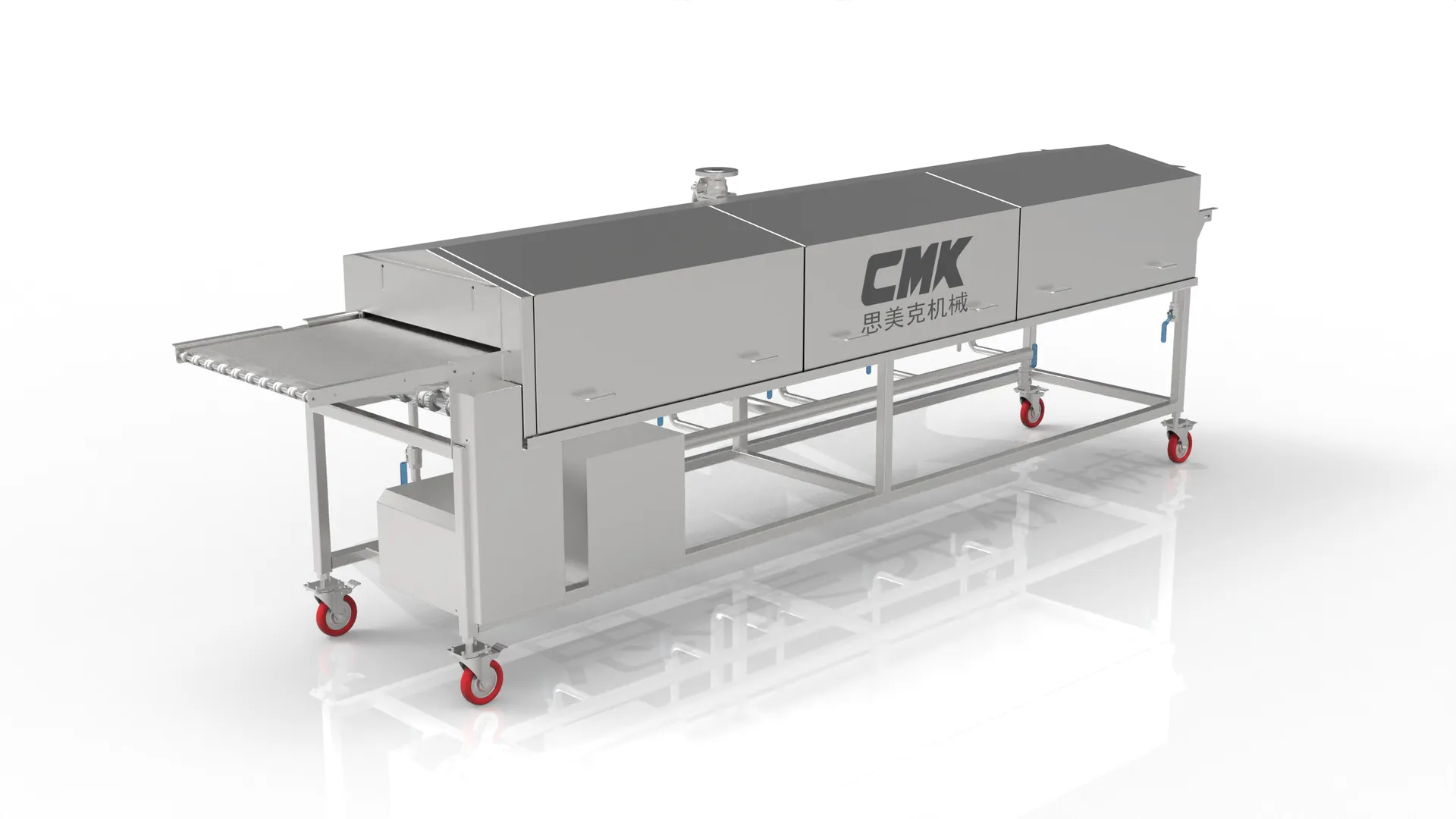

Steam Thawing Machine
Uses upper and lower steam pipes for uniform surface thawing before coating. Automatic temperature regulation supports stable yield and repeatable processing.
Model: CMK-ZQJD600 / CMK-ZQJD800 / CMK-ZQJD1000
Features of Steam Thawing Machine
- ✓Upper and lower steam distribution pipes thaw product surfaces evenly.
- ✓Belt speed is VFD-controlled from 2~15m/min.
- ✓Full SUS304 stainless steel construction is corrosion-resistant and easy to clean.
- ✓External steam source and steam pipework connection are required.
- ✓Automatic steam input regulation maintains the set temperature.
- ✓Even thawing helps increase product yield.
- ✓Width options: 600mm, 800mm, and 1000mm.
About This Machine
The Steam Thawing Machine uses upper and lower steam distribution pipes to deliver uniform surface thawing of frozen products. Even thawing helps increase product yield. The operator sets the target temperature according to their process requirements, and the system automatically regulates steam input to maintain that temperature. An external steam supply with steam pipework connection is required.
Thawing Process
Upper and lower steam distribution pipes deliver simultaneous, uniform thawing on all product surfaces, helping to increase product yield. Belt speed 2~15m/min (VFD-controlled) for flexible thawing time adjustment. The operator sets the target temperature per their process requirements, and the system automatically regulates steam input to maintain it.
Hygiene & Maintenance
Full SUS304 stainless steel construction — corrosion-resistant and easy to clean. Three width options (600mm, 800mm, 1000mm). Customer to provide steam source.
Applications
Suitable for surface thawing of frozen products prior to pre-dusting, battering, or breading.
Technical Parameters
- CMK-ZQJD600
- 3500 × 1000 × 1150mm
- Effective Width
- 600mm
- Belt Speed
- 2 ~ 15m/min (adjustable)
- Conveyor Height
- 900mm
- Thawing Temp Range
- Room temperature ~ 120°C
- Power
- 0.75kw
- Capacity
- 12,000 ~ 20,000 pcs/h
- Note
- External steam supply with steam pipework connection required; customer to provide.
- CMK-ZQJD800
- 3500 × 1200 × 1550mm
- Effective Width
- 800mm
- Belt Speed
- 2 ~ 15m/min (adjustable)
- Conveyor Height
- 900mm
- Thawing Temp Range
- Room temperature ~ 120°C
- Power
- 1.1kw
- Capacity
- 15,000 ~ 25,000 pcs/h
- Note
- External steam supply with steam pipework connection required; customer to provide.
- CMK-ZQJD1000
- 3500 × 1450 × 1550mm
- Effective Width
- 1000mm
- Belt Speed
- 2 ~ 15m/min (adjustable)
- Conveyor Height
- 900mm
- Thawing Temp Range
- Room temperature ~ 120°C
- Power
- 1.5kw
- Capacity
- 18,000 ~ 32,000 pcs/h
- Note
- External steam supply with steam pipework connection required; customer to provide.
Request a Quote & Configuration
Share your product specs and capacity targets. We'll recommend the right configuration with detailed technical data.
